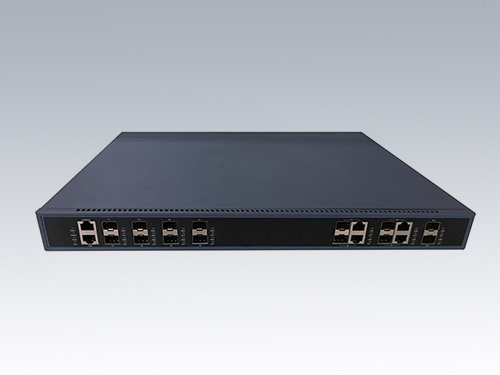

8 PON PORT GPON OLT

8 PON PORT GPON OLT

G9008-D is designed for chassis OLT device which provides 8  downlink  PON ports, 4 uplink GE Combo ports,4 uplink 10GE port  by SmartFiber. The height is only 1U for easy installation and space saving.
  • G9008-D is designed for chassis OLT device which provides 8  downlink  PON ports, 4 uplink GE  ports,4 uplink 10GE port  by SmartFiber. The height is only 1U for easy installation and space saving. Each PON supports up to 128 terminals the whole device supports up to 1024 ONUs under full configuration. G9008-D adopts advanced technology to support SLA and DBA to keep strong function on the Ethernet and QoS features. It is applied for commercial and grid network digital management to provide perfect smart strong advanced professional solutions for “automatic distribution” and “electricity information collection” in the implemented project for the national grid.

  • Attributes G9008-D
    Switching capacity 104Gbps
    Throughput (IPv4/IPv6) 80MPPS
    Ports 8*PON port,4*GE TX,4*10GE SFP+
    Power redundancy Dual power supply. Can be double AC double DC or AC+DC
    Power supply AC:Input 100~240V,47~63Hz;
    DC:Input -36V~-75V;
    Power consumption ≤85W
    Outline dimensions
    (mm) (W*D*H)
    440mm×44mm×380mm
    Weight (in maximum configuration) ≤8kg
    Environmental
    requirements
    Working temperature:-15°C~55°C
    Storage temperature:-40°C~70°C
    Relative humidity:10%~90%,no condensing


  • Attributes G9008-D
    PON features

    GPON Satisfy ITU -T standard
    TR-101 compliant solution for FTTx OLT applications
    High splitter rate each PON port supports 128*ONU
    Maximum transmission distance of 20KM
    Support uplink FEC downlink FEC(Forward Error Correction)
    ONU  identifier authentication  :SN /SN+PASSWD
    Bandwidth allocation mechanism
    5 types of T-CONT bandwidth
    Static Bandwidth Allocation
    Dynamic Bandwidth Allocation
    GPON feature parameter
    4096 port-IDs per GPON MAC (Downstream and Upstream)
    1024 Alloc -IDs per GPON MAC (Upstream )
    L2 features MAC MAC Black Hole
    Port MAC Limit
    VLAN 4K VLAN entries
    Port-based/MAC-based/IP subnet-based VLAN
    Port-based QinQ and Selective QinQ (StackVLAN)
    VLAN Swap and VLAN Remark and VLAN Translate
    GVRP
    based on ONU service flow VLAN add delete replace
    Spanning tree protocol IEEE 802.1D Spanning Tree Protocol (STP)
    IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP)
    Port Bi-directional bandwidth control
    Static link aggregation and LACP(link Aggregation Control Protocol)
    Port mirroring and traffic mirroring
    Security features User  security Anti-ARP-spoofing
    Anti-ARP-flooding
    IP Source Guard create IP+VLAN+MAC+Port binding
    Port Isolation
    MAC address binds to port and port MAC address filtration
    IEEE 802.1x and AAA/Radius authentication
    TACACS+ authentification
    dhcp anti-attack flood attack automatic suppression
    ONU isolation control
    Device security Anti-DOS attack(such as ARP,Synflood Smurf ICMP attack) ARP detection worm and Msblaster worm attack
    SSHv2 Secure Shell
    SNMP v3 encrypted management
    Security IP login through Telnet
    Hierarchical management and password protection of users
    Network security User-based MAC and ARP traffic examination
    Restrict ARP traffic of each user and force-out user with abnormal ARP traffic
    Dynamic ARP table-based binding
    Supports IP+VLAN+MAC+Port binding
    L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet
    Port-based broadcast/multicast suppression and auto-shutdown risk port
    URPF to prevent IP address counterfeit and attack
    DHCP Option82 and PPPoE+ upload user’s physical location
    Plaintext authentication of OSPF、RIPv2 and MD5 cryptograph authentication
    IP routing IPv4 ARP Proxy、DHCP Relay、DHCP Server、Static route
    IPv6 ICMPv6、ICMPv6 redirection、DHCPv6、ACLv6、Configured Tunnel、6to4 tunnel
    IPv6 and IPv4 Tunnels
    Service features ACL Standard and extended ACL
    Time Range ACL
    Packet filter providing filtering based on source/destination MAC address source/destination IP address port protocol VLAN VLAN range MAC address range or invalid frame. System supports concurrent identification at most 50 service traffic
    Support packet filtration of L2~L7 even deep to 80 bytes of IP packet head
    QoS Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow
    Priority remark to port or self-defined flow and provide 802.1P DSCP priority and Remark
    CAR(Committed Access Rate)、Traffic Shaping and flow statistics
    Packet mirror and redirection of interface and self-defined flow
    Super queue scheduler based on port and self-defined flow. Each port/ flow supports 8 priority queues and scheduler of SP WRR and SP+WRR.
    Congestion avoid mechanism,including Tail-Drop and WRED
    Multicast

    IGMPv1/v2/v3 、IGMPv1/v2/v3 Snooping
    IGMP Filter
    MVR and cross VLAN multicast copy
    IGMP Fast leave
    IGMP Proxy
    PIM-SM/PIM-DM/PIM-SSM
    PIM-SMv6、PIM-DMv6、PIM-SSMv6
    MLDv2/MLDv2 Snooping
    MPLS NPLS LDP
    Reliability Loop protection EAPS and GERP (recover-time <50ms)
    Loopback-detection
    link protection Flexlink (recover-time <50ms)
    RSTP/MSTP (recover-time <1s)
    LACP (recover-time <10ms)
    BFD
    Device protection VRRP host backup
    Double fault-tolerant backup of host program and configuration files
    1+1 power hot backup
    Maintenance Network maintenance Telnet-based statistics
    RFC3176 sFlow、LLDP
    802.3ah Ethernet OAM
    RFC 3164 BSD syslog Protocol
    Ping and Traceroute
    Device management Command-line interface(CLI) Console Telnet and WEB configuration
    System configuration with SNMPv1/v2/v3
    RMON (Remote Monitoring)1/2/3/9 groups of MIB
    NTP(Network Time Protocol)
