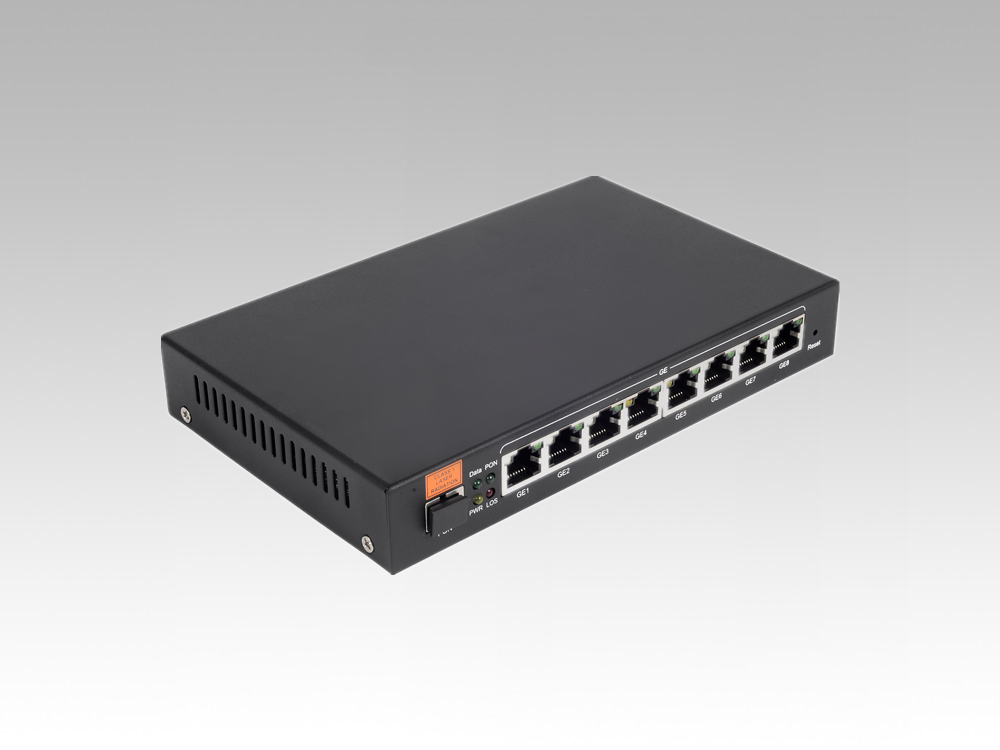

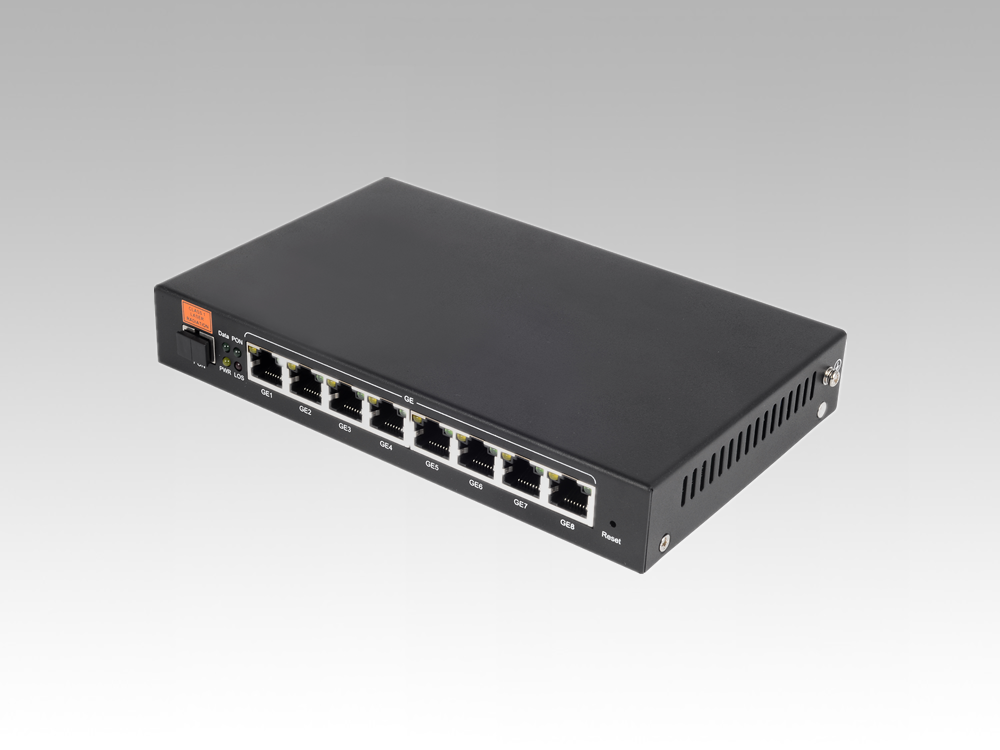

8GE GPON ONU
8GE GPON ONU
JY-GP8000 series is Smartfiber company access to applications for large-scale carrier-grade GPON FTTB ONU equipment, the series follows the ITU.T G.984 comprehensive GPON equipment and technical requirementss of China Telecom GPON standard, unified, open software and hardware architecture provide a powerful network management capabilities, to achieve a flexible network and management system, with telecom-grade operations, manageability and easy to maintain. Provide users with fiber to the building (FTTB, Fiber To The Building) solutions.
-
Features
>Conform to ITU-T G.984 standard and meet GPON technical requirements
>Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services
>Support frame filtering and suppression
>Support standard 802.1Q Vlan function support VLAN conversion
>Support 4094 VLANs (802.1Q)
>Support Dynamic Bandwidth Allocation (DBA) function
>Support QoS including traffic flow classification priority marking queue and dispatch traffic shaping and traffic control etc
>Support IGMP Snooping
>Support Ethernet port ratelimit loop detection
>Support power failure alarm
>Support lightning protection for power supply and lightning protection for service port -
Item Parameters Specification Interface PON Port 1 GPON optical interface
Meet 1000base-PX20+ standard
Symmetric 1.25Gbps
upstream/2.5Gbps downstream
SC single-mode fiber
split ratio: 1:64
Transmission distance 20KM
Receiving sensitivity:≤-28dBm
Transmitting optical power:0~+4dBmEthernet Port(LAN) 8*GE Auto-negotiation RJ45 ports
Full Duplex / Half-Duplex
RJ45 Auto-MDI/MDI-X
Transmission Distance 100 MeterManagement NetworkManagement Support IEEE802.3 QAM ONU can be remotely managed by GPON OLT
Support Remote management through SNMP and Telnet
Local managementManagement
FunctionStatus monitor Configuration management Alarm management Log management
